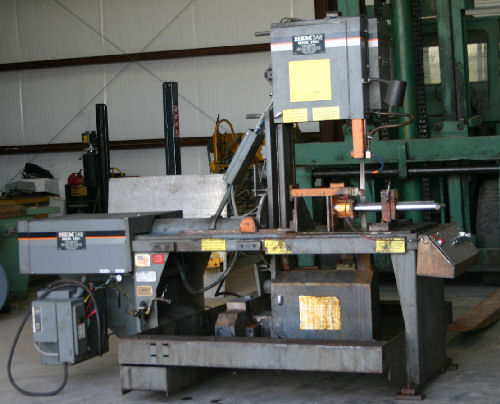

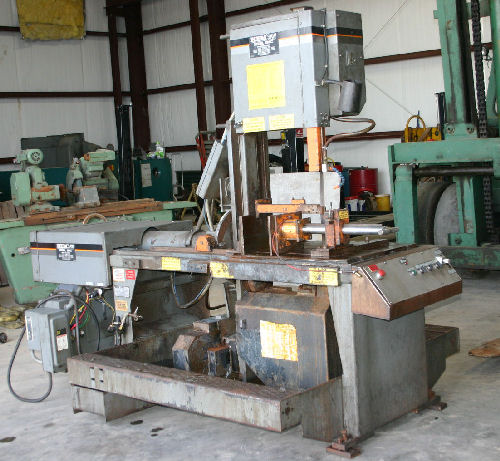

18" x 20" HEM Tilting Vertical Band Saw
18" x 20" Hem Tilting-Head Vertical Band Saw
|
Specification |
Description |
|---|---|
| Model | V100LM-2 |
| Serial Number/Series | 457699 |
| Air Powered Head Clamp for Tilting Arm | |
| Work Capacity, Nominal | 18" x 20" |
| Work capacity, 45-Degree Blade Angle | 18" x 12.5" |
| Work Height Capacity, Maximum | 20" |
| Throat Depth, Rated | 18" |
| Table Working Surface, W x L | 27" x 30" |
| Head Tilt, Left | 45- Degrees |
| Head Tilt, Right | 45-Degrees |
| Blade Width | 1.25" |
| Blade Speed, Infinitely Variable | 60 to 400 SFPM |
| Motor, Horsepower | 5 HP |
| Electrical System | 220-440/3/60 |
| Overall Dimensions, W x D | 5.5" x 8'4" |
| Overall Height | 7'2" |
| Weight, Approximately | 2670 LBS |
| Comments: New 1999 | |
PRICE : $15,000.00 USD
CALL FOR MORE INFO
|
|
|
|
|
|
G & S MACHINE
9556 FM 1960
EAST, DAYTON, TEXAS 77535
TEL: 936/257-9984 FAX:
936/257-8891
E-mail: george@gnstools.com or farrell_gs@yahoo.com
