Model No.  EZ - PATH II

Serial No.  002-081922 349

Year Model: Dec. 31, 1996

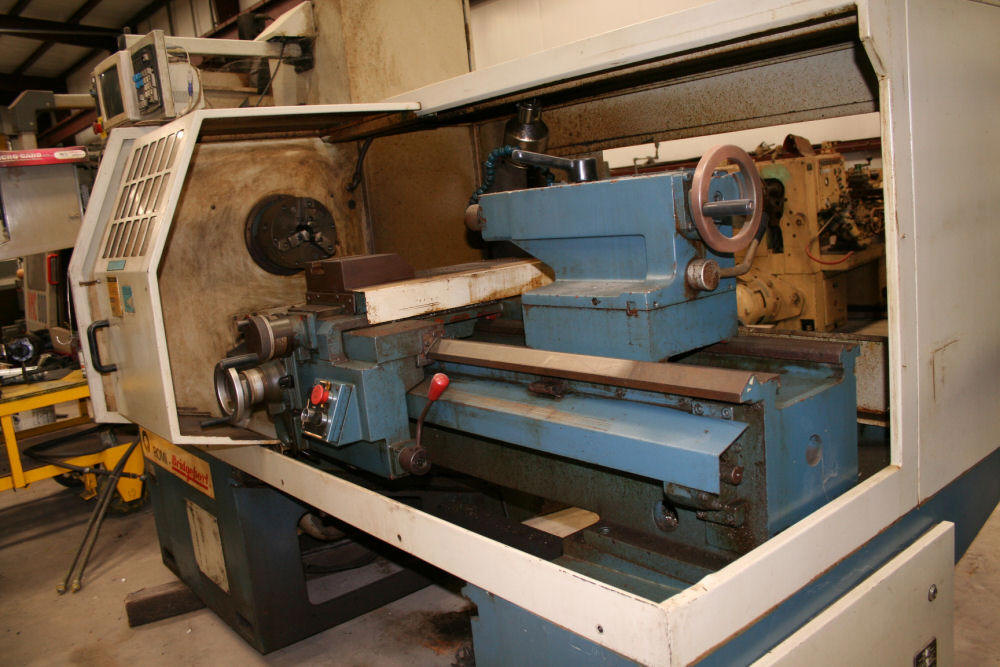

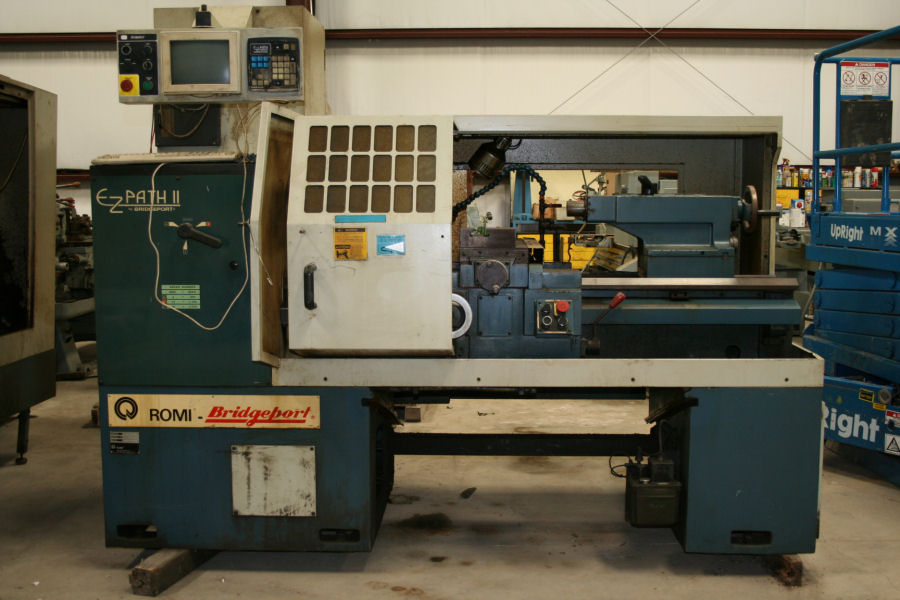

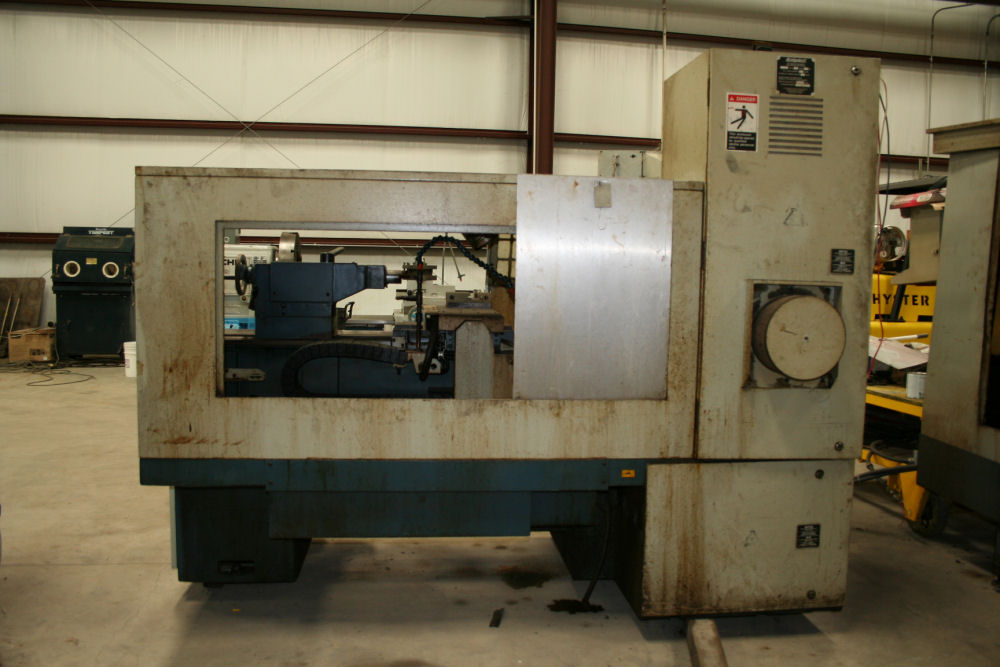

1-BRIDGEPORT ROMI 16.5" X 40" "EZ-PATH" CNC/MANUAL
  ENGINE LATHE
================================================
SPECIFICATIONS SUBJECT TO VERIFICATION:

Spindle Bore Diameter............................. 1.97"
Swing Over Bed, Maximum....................... 16.5"
Distance Between Centers, Maximum.......... 40"
Swing Over Cross Slide, Maximum.............. 8.6"
Tailstock Quill Travel................................... 6.3"
Tailstock Quill Diameter................................. 2"
Tailstock Quill Taper................................. #4 MT
Spindle Speeds, Range.................. 4 to 3500 RPM
Rapid Traverse Rate, X-Axis...................... 250 IPM
Rapid Traverse Rate, Z-Axis...................... 250 IPM
Spindle Motor, Horsepower.......................... 10 HP
Floor Space Required, L x D................... 9'2" x 5'8"
Weight, Approximately.......................... 4000 LBS

EQUIPPED WITH:

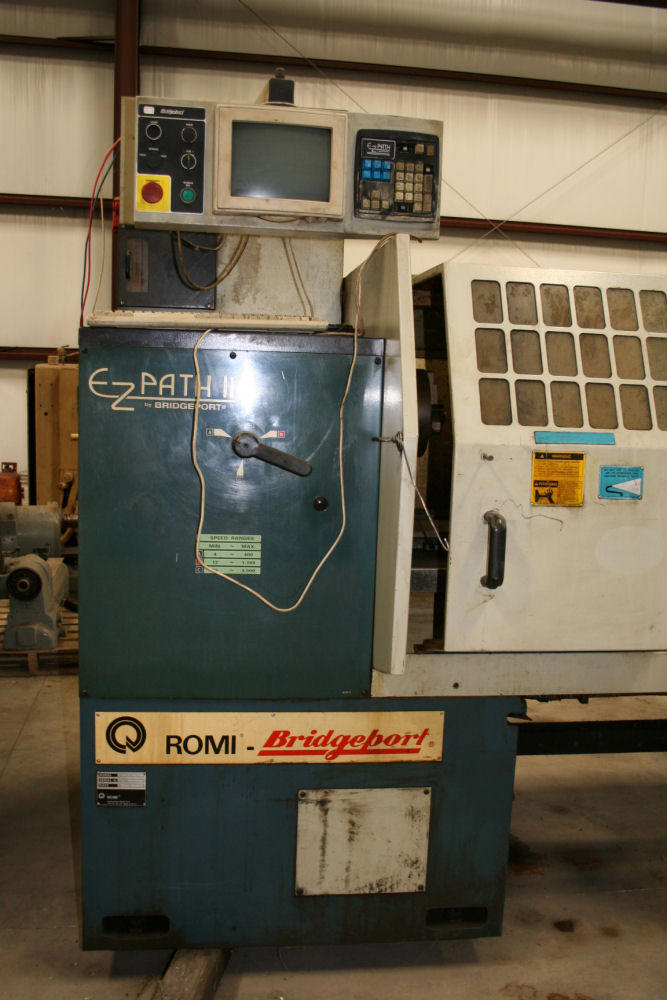

Bridgeport EZ-Path CNC Control
10" 3-Jaw Hydraulic Chuck
2-Axis Design
Inch/Metric Threading
Tailstock
Hardened & Ground Ways
Manual
