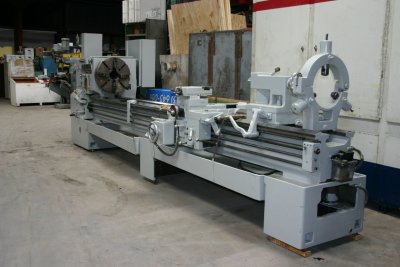

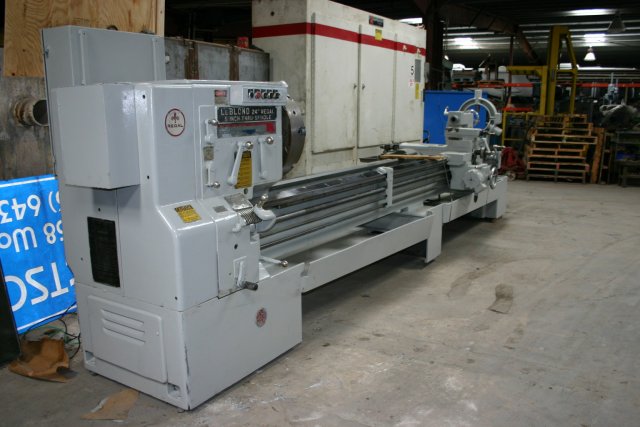

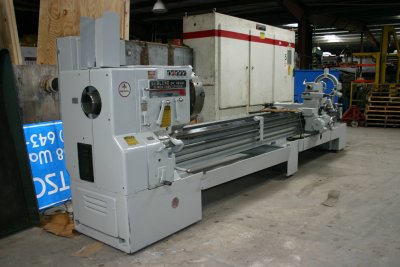

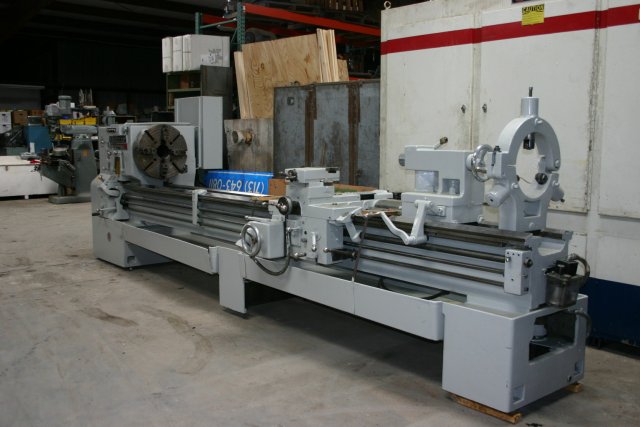

LeBlond Lathe/Sold

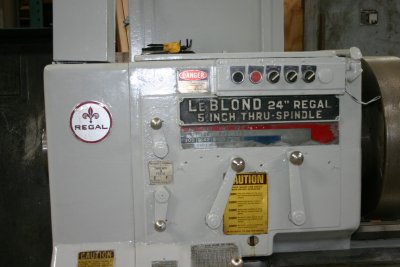

24" Regal 5-Inch Thru-Spindle

Stock #148

　

SWING OVER BEDWAYS 26"

SWING OVER CROSS-SLIDE 18 1/4"

DISTANCE BETWEEN CENTERS 144"

HOLE THRU SPINDLE 5 1/4"

HARD & GROUND BED WAYS YES

SPINDLE SPEEDS 12 TO 900 RPM

THREADS 3 1/2 TO 64 TPI

FEEDS .0064 TO .115 IPR

TAILSTOCK 3 1/8'' DIA.

TAILSTOCK TAPER 5 MT

TAILSTOCK TRAVEL 7 1/2''

TAPER ATTACHMENT YES

THREAD DIAL YES

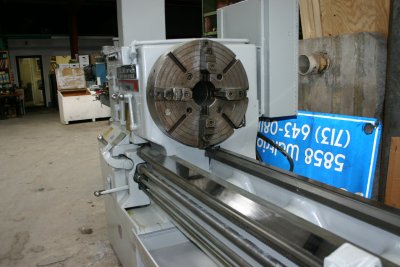

CHUCK 21" BUCK 4 JAW

CHIP PAN YES

COOLANT YES

MAIN MOTOR 10 HP

STEADY REST YES
