SPECIFICATIONS:
Max swing-side head above table top 78"
Max swing-side head below table top 82"
Max distance table to rail 62"
Cross rail vertical travel 50"
Max distance table to face of turret 73 1/4"
Turret head vertical travel 30 3/8"
Turret head toolpost holes 2 3/4"
Ram head vertical travel 41"
Ram head Horizontal travel-left of center 46 7/8"
Ram head Horizontal travel-right of center 1 1/2"
Side head max distance table to ram 52 5/8"
Side head vertical travel 62"
Side head horizontal travel 27"

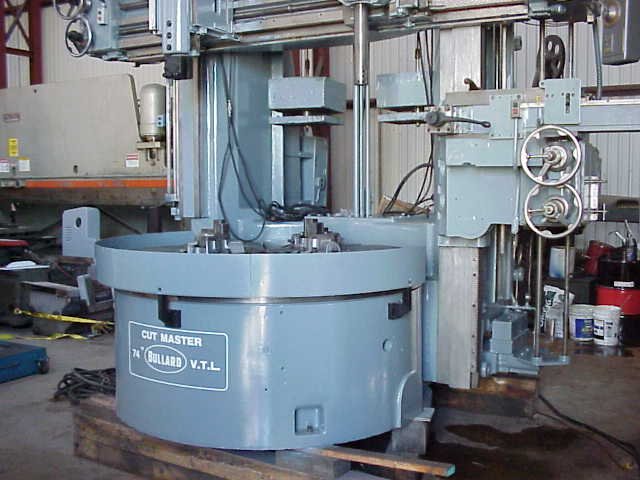

Table: Plain table W/radial & parallel T-slots 74" Dia.
Speeds: 20 3.2 - 120 RPM
Feeds: 16 in geometric ratio .0026 - .500"rev

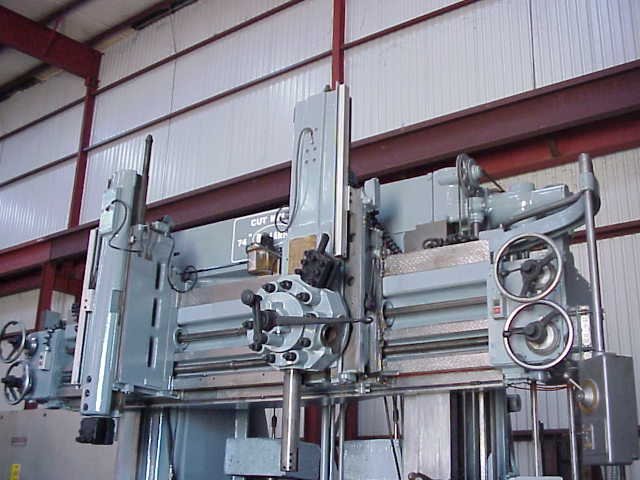

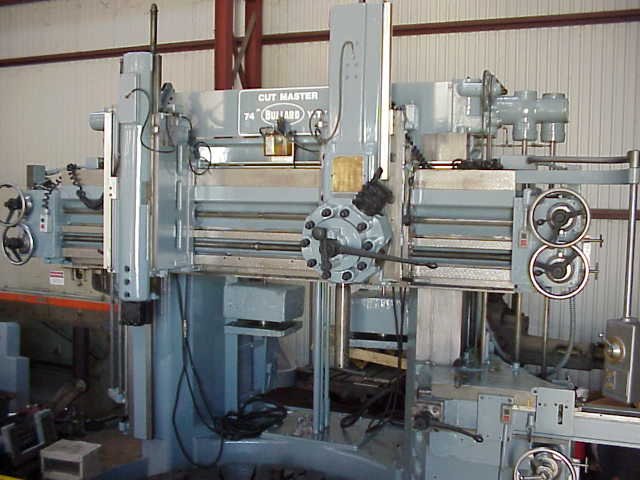

Heads: RH swiveling (30°) five sided turret head on cross rail
LH swiveling (30°) cylindrical ram head on cross rail
Side head with 5 1/2” square turret for 1 1/4" x 1 1/2" tools
EQUIPPED WITH: 40 HP Motor 3/60/220-440 volt
Pendant control

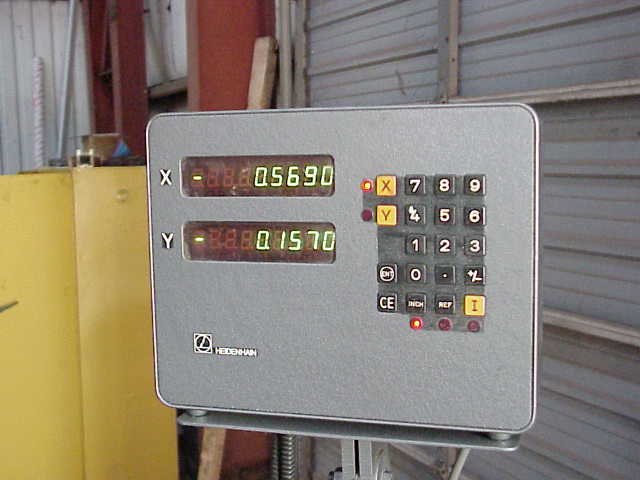

2-Axis Heidenhain DRO – Turret Head
2-Axis Heidenhain DRO – Ram Head
S/N 25425
PRICE: ………. (Current Houston, TX Location)
Machine is offered Subject to Prior Sale, Specifications Subject to Correction, As Is, As Inspected, Payment in Full Prior to Loading.
Simply click on each photo to enlarge it.
