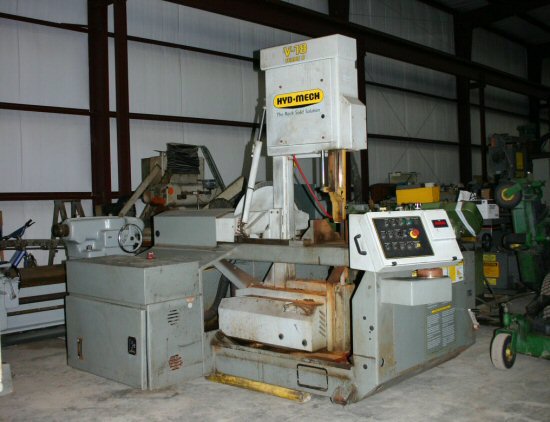

Hyd-Mech Bend Saw V18 Hydmech Vertical Saw
YEAR MODEL - SEPT. 2001
HYD-MECH V18 TECHNICAL SPECIFICATIONS
Capacity |
Rectangular (w x h) |
Round |
90 Degree |
18" x 20" |
17.5" |
Extended Head |
18" x 31" |
17.5" |
Canted Head |
18" x 18" |
17.5" |
Extended Canted Head |
18" x 28" |
17.5" |
45 Degree |
18" x 13" |
13" |
Mitering
Capability:
45 degrees left to 45 degrees right
Blade Size:
1.25"
x 14'11"
1.25" x 16' 11" (extended head)
Blade Drive: 7.5 HP
Blade Speed: 65 - 385 SFM
Blade Wheel Diameter: 19 Inches
Hydraulic Drive: 2 HP
Hydraulic Tank Capacity: 7 USGAL.
Coolant Tank Capacity: 20 USGAL.
Vise Control: HYDRAULIC
Table Height: 38"
Workload: 8,000 lbs
Machine Weight:: 4,500 lbs
Dimensions (w x l x h): 80" x 120" x 97"
MACHINE CONSTRUCTION & FEATURES
Machine Base - The machine base is designed and produced with electro-welded steel components for maximum rigidity and support. The saw head carriage is guided by high quality linear ways and bearings. A 20-gallon coolant tank is built into the base. Leveling bolts are located at corners of the machine.
7.5 HP Motor - Heavy-duty gearbox and 7.5 HP motor, which is controlled by an AC inverter drive. Blade speed is easily adjusted from the control console and the wide range of available band speeds allows for efficient cutting of many types of material.
Blade Drive - The blade drive motor is controlled by a Mitsubishi AC inverter drive. Provides smooth operation and infinite adjustment from 65 to 385 sfm.
Blade Wheels - 19" high quality cast iron hardened wheels with heavy-duty wheel & gearbox shaft bearings.
Blade Guides - Replaceable carbide insert guides housed in two heavy duty cast iron guide arms provide cut accuracy of + / - .002" per linear inch of material and excellent vibration dampening. The hydraulically powered idler side guide arm allows for easy adjustment for proper guide arm spacing.
Powered Blade Brush - Driven off the blade drive wheel the 3" wire brush keeps the blade gullets clean, helping to maximize blade performance and life.
Blade Tensioning - Hydraulic blade tensioning provides consistent automatic blade tension while allowing quick and easy un-tensioning for blade changing
Coolant System - A centrifugal pump immersed in the 20-gallon coolant reservoir delivers ample coolant flow through carbide faced and nozzle guides. A flow cock is present for coolant quantity adjustment.
Hydraulic System - A 2HP driven hydraulic pump supplies system pressure. The system pressure through 3-position directional valves controls all vising, head swing, head advance/retract, blade tension, and guide arm movement. The pump and motor assembly and hydraulic manifold complete with all function directional valves all swing out with the hydraulic compartment door for easy service access, and minimal downtime.
Hyd-Mech's Direct Down feed-(DDF)
Provides easy adjustment of both head feed rate and cutting pressure. Machine sawing chart provides proper blade speed, tooth pitch, feed rate and feed force recommendations. Saw head control includes fast approach control feature for quick set ups. Feed rate is displayed on PLC in linear inches per minute during the sawing operation via rotary encoder.
Electrical System - The electrical control components are housed in a console at the back of the machine. The operator manual switches are conveniently located on an articulating console positioned at the front of the saw. Components and wiring are neatly laid out and labeled for easy troubleshooting.

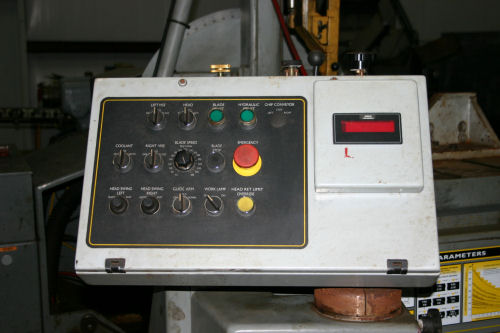

Controls - Conveniently located on an articulating console on the front of the machine, the selector switches and push buttons allow the operator to manually control all machine functions including emergency stops.
Variable Vise Pressure - allows for adjustment of the clamping pressure of both vises. Recommended for thin wall tubing and other light material applications where standard vise pressure may deform the material.
